Product Details:
|
| Model No.: | AFS20-25~AFS55-60 | Thermal Expansion Coefficient: | 6X10-6 /ºC(20-1000ºC) |
|---|---|---|---|
| Thermal Conductivity: | 0.698W/M.K(1200ºC) | Type: | Heat Resistant Material |
| Angularity: | Max 1.1 | Feature: | No Cracking |
| High Light: | AFS55 Bauxite Sand,AFS60 Bauxite Sand,Solid Sphere Bauxite Sand |
||
1. Ceramic Foundry Sand Introduction

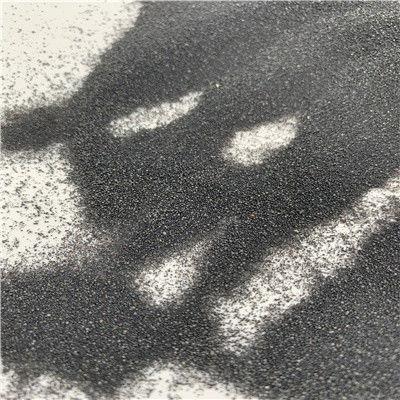

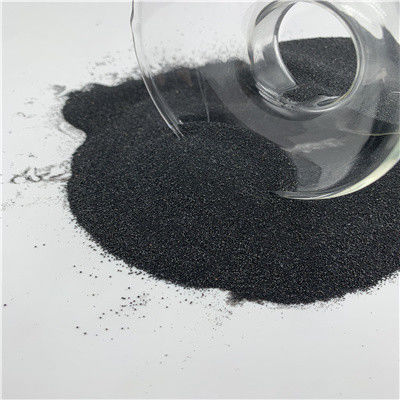

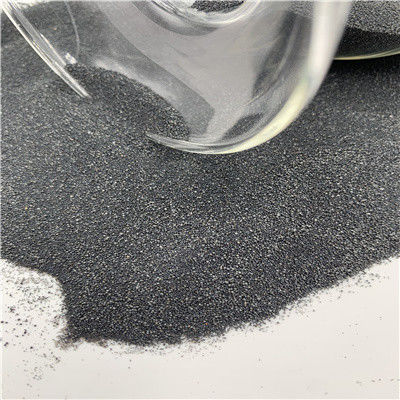

Ceramsite is a spherically shaped bauxite sand manufactured by melting bauxite in an Electric Arc Furnace followed by a proprietary spraying process. It beaded foundry sand provides a unique combination of spherical shape grain, chemistry, and physical properties that result in numerous performance advantages compared with other foundry sands. The grain surface is much smoother than other foundry sands, leading to better castings.
2. Ceramic Foundry Sand Specifications
| Sand Type | Linear thermal expansion | ||
| 20 – 300ºC | 20 – 600ºC | 20 – 800ºC | |
| Silice | 14.0 | 23.0 | 17.0 |
| Chromite | 7.1 | 7.5 | 7.5 |
| Zircon | 3.4 | 4.1 | 4.5 |
| Cerabeads | 3.5 | 4.0 | 4.3 |
| Ceramsite | 7.1 | 7.3 | 7.2 |
| Al2O3 | 78-85% |
| SiO2 | 8-12% |
| Fe2O3 | 3.5% (max) |
| TiO2 | 3.5% (max) |
| Refractoriness | 1850C (3362F) |
| Angle Coefficient | 1.1 (max) |
| Thermal Expansion (at 100°C) | 0.15 |
| Thermal Conductivity | 0.196 W/m.K |
| Specific Heat | 873 J/kg |
| Bulk Density | 1.9-2.2 g/cm3 |
| pH Value | 7.65 |
| Shape | Solid Sphere |
| Binder Content Required | 3-4% |
| Crushability | 113 |
3. Ceramic Foundry Sand General advantages
1. Stable quality on chemical composition
2. Perfect grain round shape and various grain sizes
3. High gas permeability
4. High temperature resistance
5. Good break down and fast curing and good release
6. Perfectly round shape with higher fluidity improves fill-in efficiency while reducing resin level
7. Smooth surface of spherical shape greatly improves collapsibility after pouring
8. Very low thermal expansion ensures fewer or no casting defects such as veining and deformation
9. Excellent thermal conductivity and heat absorption capacity close to that of zircon
4. Ceramic Foundry Sand Particle Size Distribution
| TYPICAL CHEMICAL ANALYSIS | |
| AL2O3 | 70-75% |
| SiO2 | 8-20% |
| Fe2O3 | ≤3% |
| TiO2 | ≤3.5% |
| CaO | ≤0.45% |
| MgO | ≤0.35% |
| K2O | ≤0.33% |
| Na2O | ≤0.08% |
| TYPICAL PHYSICAL PROPERTIES | |
| Refractoriness | ≥1800 ºC |
| Specific gravity: | 3.4g/cm3 |
| Bulk density(LPD): | 1.95-2.05 g/cm3 |
| Color: | black brown |
| Grit shape: | spherical ball |
| Thermal expansion coefficient | 6x10-6 /ºC(20-1000ºC) |
| Thermal conductivity | 0.698W/M.K(1200ºC) |
| Thermal expansion ratio | 0.12% |
| Angularity | ≤1.1 |
| Available sizes | |
| AFS15-20,AFS 15-25,AFS25-35,AFS25-30,AFS30-35,AFS35-40,AFS40-45,AFS45-50,AFS40-50,AFS50-55,AFS55-60,AFS60-65,AFS60-70,AFS70-80,AFS95-110 Customized sizes are available upon request | |
5. Ceramic Foundry Sand Applications
1, Widely used in foundry technique like resin-bonded sand, sodium silicate sand, and clay- bonded sand for sand core and casting mould making.
2, Replace chromite sand and widely used in sand core making like jacket core, oil duct core, tappet core of engine.
3, Replace chromite sand for steel casting facing sand and sub-layer of molding sand (backing sand).
4, Widely used as dry sand and sand box for EPC process and V method of casting processes.
5, Widely used as the main raw materials of advanced refractory products (Ladle drainage sand,gravity casting material, casting coating, etc.).
6, Widely used as cleaning sand for copper and aluminum alloy castings.
